Gazebo
Hexagonal CLASsic

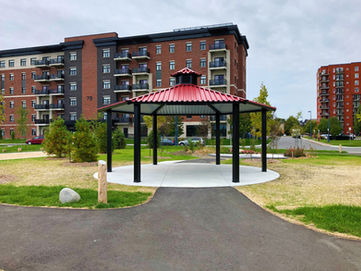

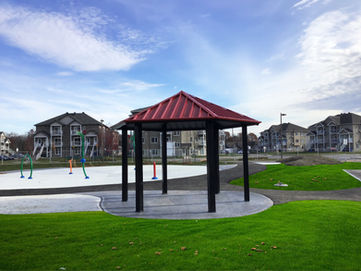

Hexagonal (6) or octagonal (8), gazebos are mainly used to provide citizens with a meeting place or to organize public events. This type of shelter is also called a kiosk or pavilion. Simple, balanced and harmonious, this model fits perfectly into any layout.
Specifications
Model: Hexagonal Shelter Classic
Roof type: Hip Roof
Roof pitch: 6:12
Roof
Model: Ribbed panel every 10"
Material: 26 ga galvanized steel.
Paint: Pre-Painted, Perspectra Plus™ Series
Structure
Material: A500 standard Steel tube
Shape: HSS. No open profile used
Post: Square 150 x 150 mm minimum
Hardware: ASTM A-325 Galvanized steel
Anchor: G40.20.300W (A307) Complies
Welding: Performed per CSA W47.1
Paint: Polyester Powder Coat - Z-Series
Treatment: Degreased, rinsed and chemically treated
Primer: Zinc-rich primer
Resistance
Snow/Wind: Calculated by local structural engineer
Option offered
Roof: Ancestral roof and wooden under-roof
Deco elements: Cupola, Gable, Headband, Weathervane, Railings
Downloads
feature
Hided anchors and assembly hardwares inside the posts.
Robust and safe steel structure that does't require snow removal.
Super Durable polyester powder coating for architectural applications.
H.S.S tube which allows electric passage inside the poles.
MODELS & DRAWINGS
16 ' Hexagonal
Product #
Model
Option
AH03-16-S
Classic
Any
Dimension
16' (4,9m)
16' Hexagonal
Product #
Model
Option
AH03-16-BC
Classic
Top ornament & cupola
Dimension
16' (4,9m)
20' Hexagonal
Product #
Model
Option
AH03-20-S
Classic
Any
Dimension
20' (6,1m)
20' Hexagonal
Product #
Model
Option
AH03-20-BC
Classic
Top ornament & cupola
Dimension
20' (6,1m)
24' Hexagonal
Product #
Model
Option
AH03-24-S
Classic
Any
Dimension
24' (7,3m)
24' Hexagonal
Product #
Model
Option
AH03-24-BC
Classic
Top ornament & cupola
Dimension
24' (7,3m)
Hexagonal 28'
# Produit
Modèle
Option
AH03-28-S
Classique
Aucune
Dimension
28' (8,5m)
Hexagonal 28'
# Produit
Modèle
Option
AH03-28-BC
Classique
Bandeau & coupole
Dimension
28' (8,5m)
